GPS Receivers
Πολύ Καλή

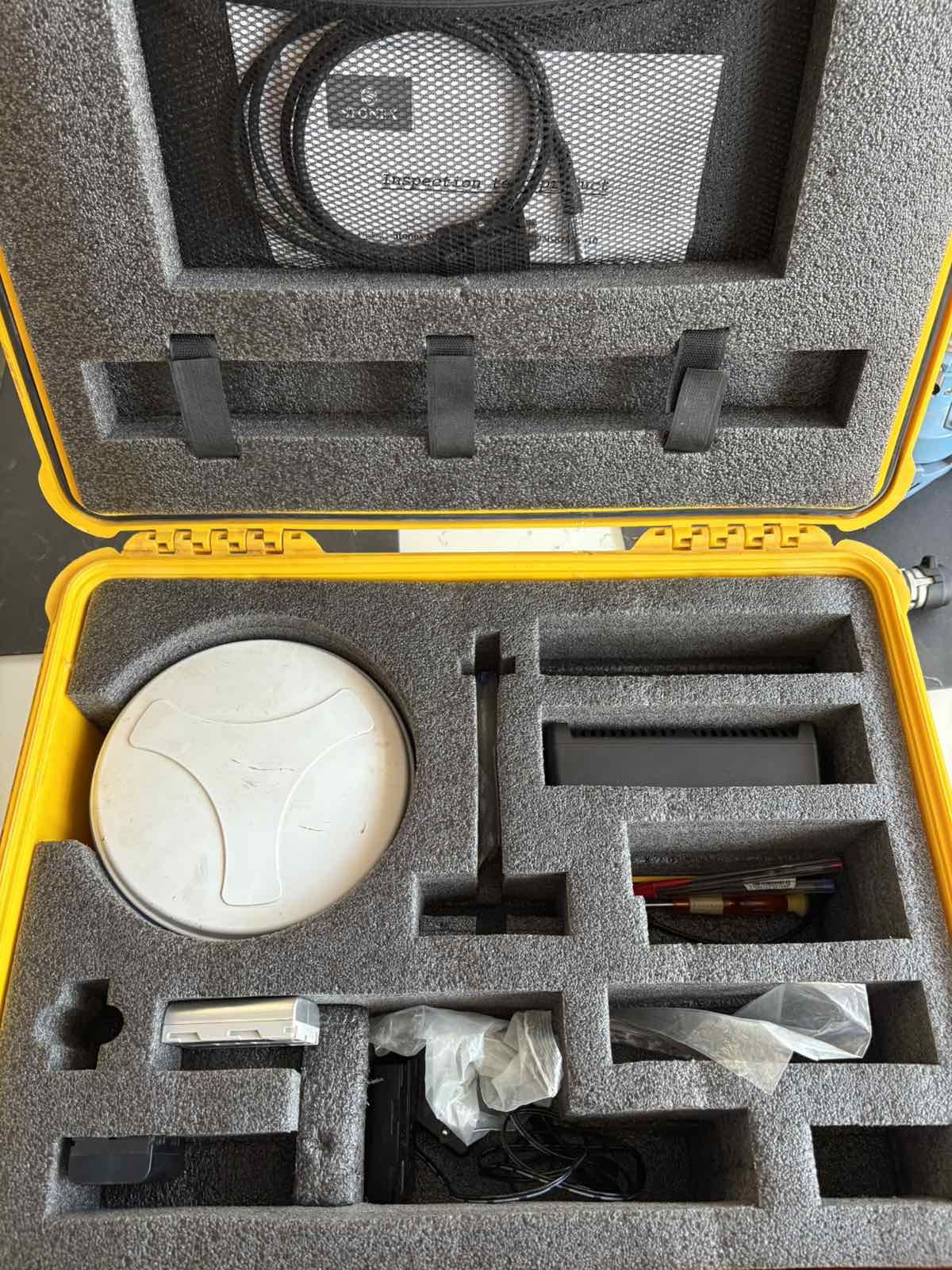

STONEX S8+
€850,00 + ΦΠΑ
Περιγραφή
1
Χαρακτηριστικά
Channels 120
Satellite tracked GPS: L1, L2, L2C, L5
GLONASS: L1, L2
Battery (Rechargeable L GALILEO: E5a, E5b, Alt-BOC
BeiDou: B1, B2
SBAS
QZSS
L-Band
Position rate Up to 5 Hz (higher frequency
optional)
Signal recapture < 1 sec
RTK signal initialization < 10 sec
Hot start < 35 sec
Initialization realiability > 99.9%
Internal memory 256 Mb
Micro SD Card 4 Gb Internal Memory (Over 60 days
of raw static data storage with
recording sample every 1 second)
Accuracy specifications
Static horizontal 5 mm ± 0.5 ppm (RMS)
Static vertical 10 mm ± 0.5 ppm (RMS)
Fixed RTK horizontal 10 mm ± 1 ppm (RMS)
Fixed RTK vertical 20 mm ± 1 ppm (RMS)
Single Point L1 L2
positioning
1.2 m (3D RMS)
SBAS positioning typically < 5 m (3D RMS)
Code differential
positioning
0.25m (3D RMS )
Communication
Connectors I/O 7-pins Lemo and 5-pins Lemo
interfaces. Multicable with USB
interface for connecting with PC
Bluetooth device 2.4 Ghz class II: maximum range 50 m
Reference outputs CMR, CMR+, RTCM 2.1, 2.3, 3.0, 3.1
Navigation outputs Navigation output support for NMEA0183 and detailed NovAtel ASCII and
binary logs.
Internal radio
Device Pacific Crest XDL Micro
Frequency range 403 - 473 MHz
Channel spacing 12.5KHz / 25 KHz
Emitting power 0.5 /1 / 2 W
Maximum range 3-4 Km (urban environment)
5-6 km with optimal conditions
Radio Protocol Transparent EOT/EOC/FST, Satel,
Trimtalk 450S, Stonex type 1
Wireless module
Device ZTE WCDMA
Band GSM/GPRS/EDGE：
850/900/1800/1900 MHz
WCDMA/HSDPA：
2100/1900/850 MHz
Output power GSM850，EGSM900：33dBm(2W)
GSM1800，PCS1900：30dBm(1W)
WCDMA：23dBm
Power supply
Battery 2500mAh high capacity Lithium
battery, Voltage 7.4V
Voltage 9 to 15V DC external power input
with over-voltage protection
Working time in static
mode (GPS+GLONASS)
7 hours
Working time in wireless
etwork RTK with cable
connection
(GPS+GLONASS)
6.5 hours
Working time in wireless
network RTK with
Bluetooth (GPS+GLONASS)
around 4 hours
Charge time typically 7 hours
Power consumption < 3.8 W
Remaining time battery
light blinking
1 hour
Physical specification
Weight 1.2 Kg with internal battery, radio
standard UHF antenna
Operating temperature -30°C to 60°C (-22°F to 140°F)
(internal radio TX 50°C)
Storage temperature -40°C to 80°C (-40°F to 176°F)
Waterproof/Dustproof IP67. Protected from temporary.
immersion to depth of 1 meter and
from 100% humidity
Shock resistance Designed to survive a 2 m pole drop
on concrete
Vibration Vibration resistance
Winter Grade Option Operating at -40°C (-40°F)
